Screen

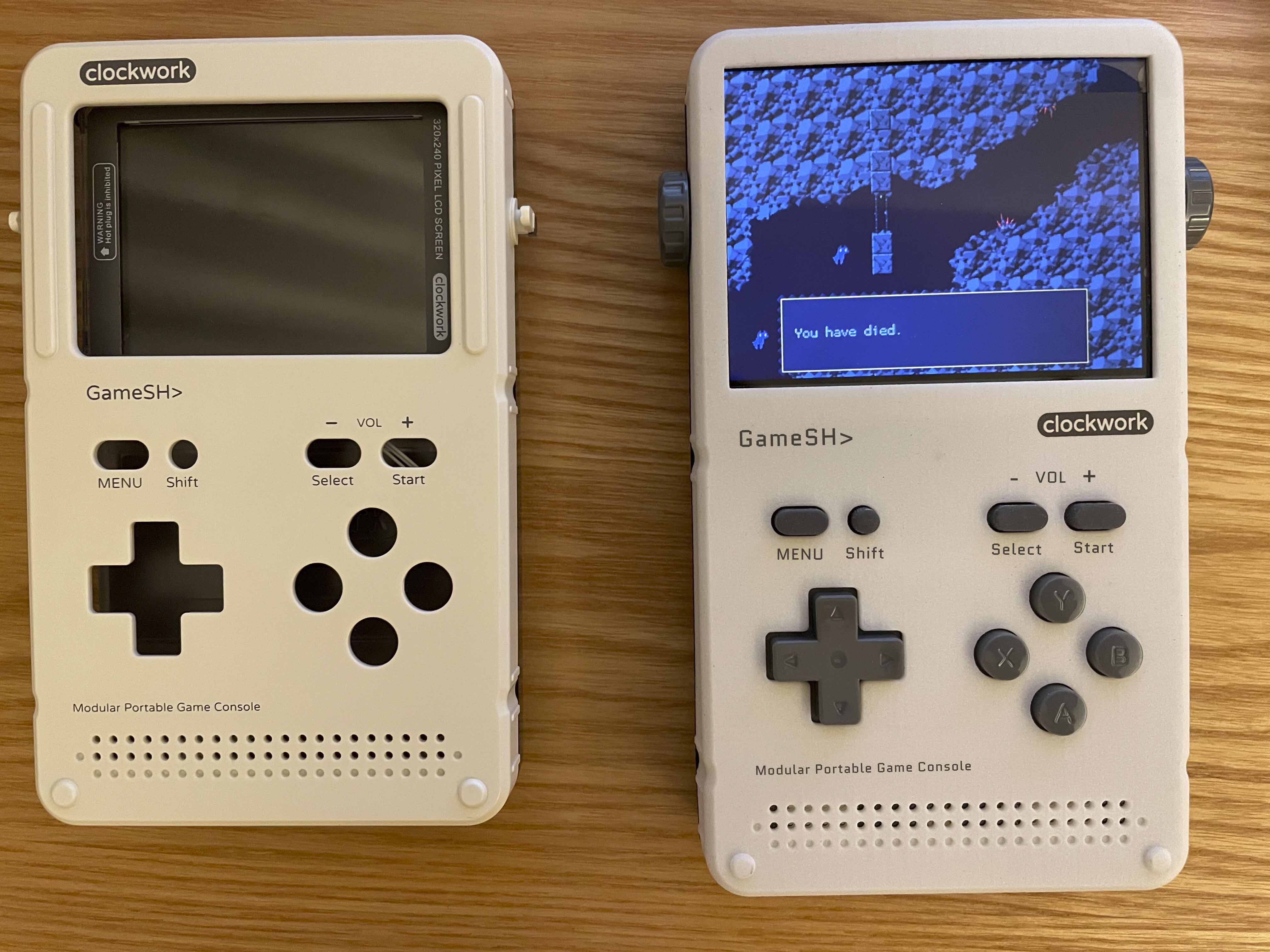

Showcase

Instructions for modification

Note

After modifying the large screen, the final volume of GameShell will increase and the weight will increase slightly. If you mind, please don't consider modifying it.

Material preparation

Purchase list:

• Screen (choose one of the two)
  • Option 1: 3.5"640x480 HD screen
  • Option 2: HD/Puqing

    Tips

    You need to note with the merchant: "It needs to be connected in series with 18V."

• FPC base
  • Link
  • Purchase parameters: 0.3mm H1.0 45P
  • Purchase quantity: 1
• PCB proofing
  • PCB file
  • Optional store: PCBA circuit board processing
• FPC cable
  • Link
  • Purchase parameters: off-the-side 45P 60mm
  • Purchase quantity: 1
• 3D printed housing
  • Original Front Case STL
  • Plus Front Case STL
  • Plus Back Case STL

    Tips

    3D printing is the first order discount in many stores, so it is not recommended here.

Kernel replacement file preparation

Link: https://pan.baidu.com/s/1mccoO4S_Rgz2dNZmYfqZ4w?pwd=8n8k

Extraction code: 8n8k

Assembly

Light it up
